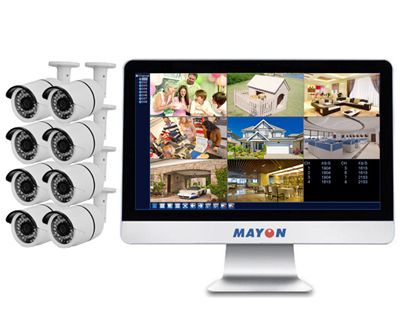

the NVR is under working status even the screen is off.
System | Operating System | Embedded Linux |
System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |
Interface | Operator interface | 16-bit true color graphic menu operation interface, support mouse operation |
Preview | 1 / 4 / 8 channel | |
Video | Video input (IPC) | 8 / 4*1080P，8 / 4 * 720P |
Video standards | PAL (625TVL,50f/s)；NTSC (525TVL,60f/s) | |
Video compression | H.264 | |
Display quality | Max 1920*1080 | |
Playback quality | 1080P / 720P | |
Decode | 2 * 1080P | |
LCD screen | Display Size：22 inch | |
Resolution：1920(H)×1080(V) | ||
Luminance：450cd/㎡ | ||
Audio | Audio compression | G.711A |
Intercom | Unsupport | |
Record & playback | Recording mode | Manual>Alarm>Dynamic Detection>Timing |
Local payback | 2*1080P；4*720P | |
Search mode | Search by Time / Calendar / Event / Channel | |
Storage & Backup | Space occupation | Video：CIF 4~5G / day * channel，D1 8~10G / day * channel； 960H 12G~20G / day*channe 720P 20~30G/day*channel；1080P ~40G/day*channel；Audio：691.2M/day*channe |
Record storage | HDD 、Network | |
Backup mode | Network backup, USB hard disk, USB burner, SATA burner | |
External interface | Video output | 1ch HDMI HD output |
Network interface | 1*RJ45 10M/100M, self-adaption | |
USB interface | 2*USB2.0 ports | |
HDD | 3.5" HDD Optional：500GB/1TB/2TB/3TB/4TB/5TB/6TB 1 SATA(Up to 6TB for each disk) | |
General | PTZ control | Control PTZ device by network |
ONVIF | Support | |
Power supply | 12V/5A | |
Power Consumption | ≤ 40W (Including HDD) | |
Work environment | Temperature:-5℃-＋55℃, Humidity:10%－90%RH , Atm:86kpa－106kp | |
Dimension | 516mm(W)*420mm(H)（with stand） | |
Weight | ≤ 6.5kg （with HDD/Without packaging） |
